Production capacity: 30–550 t/h
Inlet size: 400×185–1600×550 mm
Feeding size: <190 mm
Discharging size: 5–10 mm
Material handling: limestone, coal gangue, granite, bluestone, construction waste, cobble, pebble, basalt, iron ore, quartz, calcite, concrete, etc
Tertiary impact crusher is also called tertiary crusher, new type tertiary crusher and third generation sand maker and fourth generation sand maker. It is highly efficient and energy saving, and saves energy by 50% compared with traditional tertiary impact crusher, so that it is the most advanced tertiary impact crushing equipment in the world.
This series of tertiary impact crusher has stable and reliable performance, simplified technology, simple structure and convenient maintenance. It has big production capacity and the hammer has long service life. It is widely used for the fine crushing of many kinds of minerals such as granite, basalt, limestone, river cobble, cement clinker, quartz stone, iron ore and bauxite, and at the same time, it can also be used for producing excellent stone materials in artificial sand making, high-grade highway, railway, water conservancy, airport, building, cement, refractory and metallurgical industry.
|

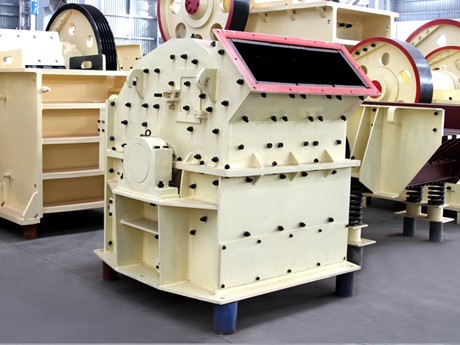

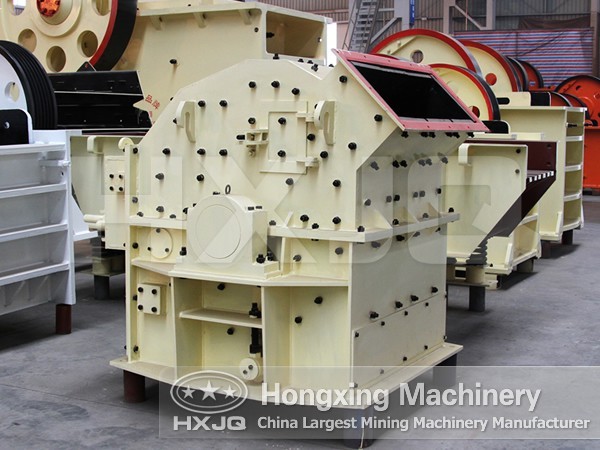

PXJ tertiary impact crusher
|
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
Rotorø×Width
(mm) |
|
Specification
|
800×400
|
800×600
|
800×800
|
1010×1010
|
1200
×1200 |
1400
×1400 |
1600
×1600 |
1800
×1800 |
|
Feed opening size(mm)
|
400×185
|
500×250
|
550×300
|
1000×350
|
1200
×450 |
1500
×500 |
1600
×550 |
1800
×800 |
|
Feeding size (mm)
|
<120
|
<180
|
<180
|
<180
|
<180
|
<190
|
<190
|
<190
|
|
Discharging size (mm)
|
5-10
|
5-10
|
5-10
|
5-10
|
5-10
|
5-10
|
5-10
|
5-10
|
|
Adjustable range of discharge opening (mm)
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
5-50
|
|
Cement Clinker(t/h)
|
10-30
|
18-40
|
20-45
|
25-55
|
50-110
|
50-150
|
85-210
|
125-270
|
|
Limestone(t/h)
|
18-45
|
23-55
|
28-65
|
35-75
|
45-100
|
50-150
|
95-260
|
140-310
|
|
Power(kw)
|
37
|
37
|
45
|
55
|
110
|
160
|
250
|
315
|
|
Theoretical weight(t)
|
3.9
|
4.5
|
6
|
10.5
|
14.4
|
22
|
35
|
49.7
|
Production capacity: 200 t/h
Processing material: river pebbles, quartz
Benefits: top notch technique support, all-round services
Production capacity: 250 t/h
Processing material: marble
Benefits: complete technique support, all-round services
