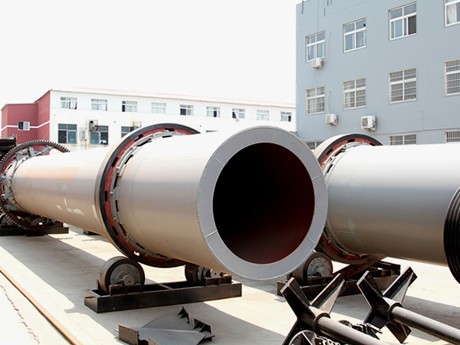

Monocular Cooler

Monocular Cooler

Production capacity: 2–36 t/h
Main motor: 15–132 kw
Weight: 28–237 t
Installation obliquity: 3–5 %
Material handling: cement, silicate, etc

Advantages

Monocular cooler is one of the important machines of the rotary kiln system and its functions are to cool the clinker from the rotary kiln from 1000-1300 degree Centigrade  to below 200 degree Centigrade and to improve the quality and grindability of the clinker.

Monocular Cooler

Overview

This equipment can fully suck the air that is used for cooling the materials as secondary circulation air, thus improving the thermal efficiency of the kiln, and in addition, it has the features of simple structure, high running rate and convenient operation and maintenance, so that is very suitable for small-sized cement plant.

Clinker with high temperature goes into the cooler through the feeding device, and the cooler will rotate to drive the materials to conduct heat exchange with the air, and with the constant rotation of the kiln according to the designed inclination and rotating speed, the materials will also periodically roll and move forward inside the kiln, so that the raw materials are send from the feeding end to the discharging end and cooled to below 200 degree Centigrade in the time period when the materials go through the rotary kiln.

Technical data

Spec./m
(Dia×Length)
Capacity
(t/h)
Installation
Obliquity
(%)
Main Reducer

Main Motor
(kw)
Weight
(t)
Φ1.5×15 2~3 3~5 ZQ500 15 28
Φ1.5×20 3~4 3~5 ZQ500 15 35
Φ1.8×18 4~6 3~5 ZQ500 18.5 47
Φ2.0×22 7~8.5 3~5 ZQ500 22 61
Φ2.2×18 7~8.5 3~5 ZQ500 22 64
Φ2.2×22 8~10 3~5 ZQ650 30 73
Φ2.4×24 12~15 3~5 ZS125 45 98
Φ2.5×25 15~20 3~5 ZS125 55 110
Φ2.8×28 16~22 3~5 ZL100 55 130
Φ3.0×30 20~25 3~5 ZL115 75 169
Φ3.2×36 28~32 3~5 ZL115 90 200
Φ3.3×40 32~36 3~5 ZI130 132 237
Φ3.6×36 35~38 3~5 ZSY450-28 185 318
Φ4.0×36 50~60 3~5 ZSY450-25 220 348
Φ4.0×45 60~70 3~5 ZSY450-25 250 414
Φ4.5×50 70~75 3~5 ZSY500-25 315 576
