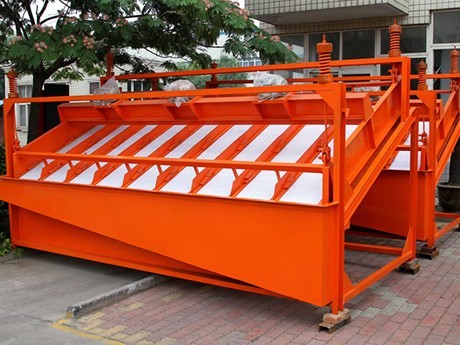

High Frequency Screen

High Frequency Screen

Production capacity: 15–48 t/h
Thickness of input material: 30%–40%
Power: 0.72–2.2 kw
Screen area: 4.5–8.1 m2
Material handling: iron ore, tin, tungsten, tantalum, niobium, etc

Overview

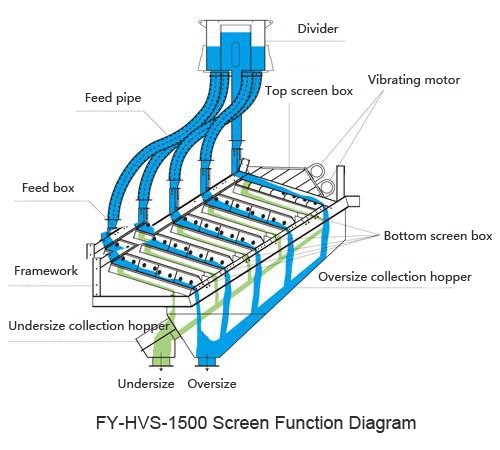

High frequency screen is composed of exciter, pulp distributor, screen frame, rack, hanging spring and screen mesh.


Advantages

High frequency screen has high efficiency, small amplitude and high screening frequency. This creates a good separation environment in which the materials smaller than the separation granularity and especially the materials and pulp with big proportion all can go through the screen holes.

screen

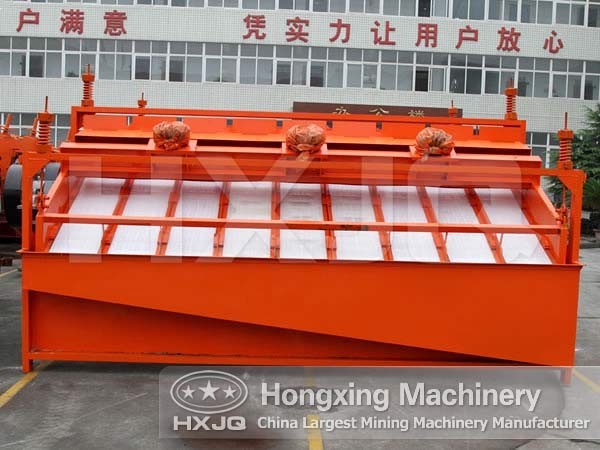

High frequency screen is composed of exciter, pulp distributor, screen frame, rack, hanging spring and screen mesh. It has high efficiency, small amplitude and high screening frequency.

Technical data

Specification
 Model
Processing
capacity(t/h)
Power
(kw)
GPS-4 15-25 0.72
GPS-5 20-30 1.1
GPS-6 24-36 1.5
GPS-8 32-48 2.2
