MBS Rod Mill

MBS Rod Mill

Production capacity: 0.62–180 t/h
Feeding granularity: ≤25–≤50 mm
Discharging size: 0.833–0.147 mm
Power: 18.5–630 kw
Total weight: 5500–137000 kg
Material handling: quartz, iron ore, copper ore, gold ore, glass, construction waste, cement clinker, etc

Overview

MBS rod mill is divided into dry type and wet type and the customers can choose suitable type according specific needs.

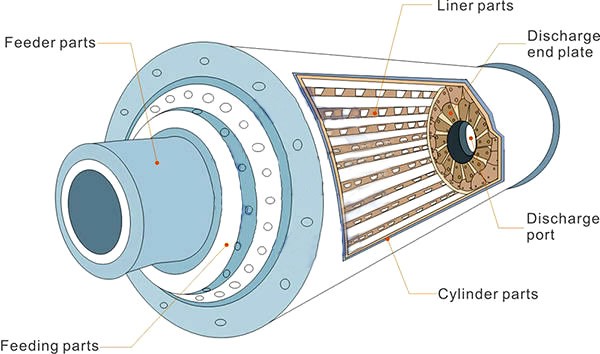

The MBS rod mill adopts advanced and controllable feeding and discharging technology and according to the materials to be ground, suitable grinding media should be equipped.


Advantages

The features of rod mill are that in the ore grinding process, the grinding media contact with the ore in a linear manner, so that it has selective grinding function. The granularity of the final products is even, and the amount of the particles that are over crushed and ground is low. When used for coarse grinding, the processing amount of rod mill is higher than that of the ball mill with the same specification.

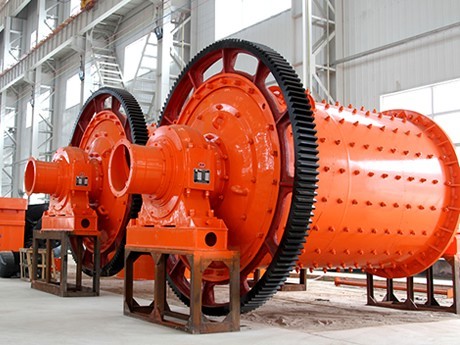

MBS Rod Mill

Technical data

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
