Roll Crusher

Roll Crusher

Production capacity: 5–100 t/h
Feeding size: ≤25–≤100 mm
Discharging size: 0.5–30 mm
Motor power: 5.5×2–30×2 kw
Total weight: 2.2–9.8 t
Material handling: coal, salt, plaster, brick and tile, limestone, etc

Advantages

This series crusher is a crushing machine researched and manufactured by our company for coarse crushing. The roll crusher is widely used for crushing high hard and medium hard materials in such industrial departments such as metallurgy, building material and refractory. It has the features of low noise, little powder dust, reliable performance and convenient maintenance.
Note: 2PG700×400 roll crusher has the best river cobble sand making effect.

Overview

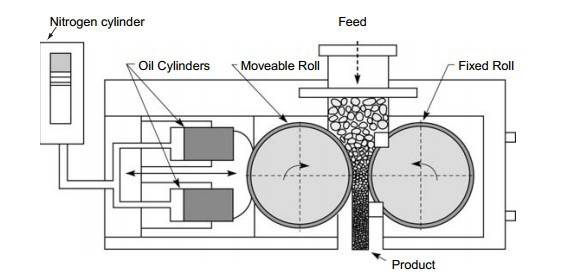

The main structure of the wheel gearing is composed of fixed roll, movable roll, drive shaft, machine box, chassis, cover piece and long gear cover. The motive power of the machine comes from the V-belt pulley of the electromotor, and a pair of middle reduction gear will make the fixed roll rotate, and then a pair of long gear drive on the other side of the fixed roll will drive the movable roll, and the two rolls perform relative movement to squeeze the materials.

Roll Crusher

Technical data

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф600 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
Total weight(t) 2.2 5.9 9.8 13.5 17.2 28.5 39.3
