Impact Crusher

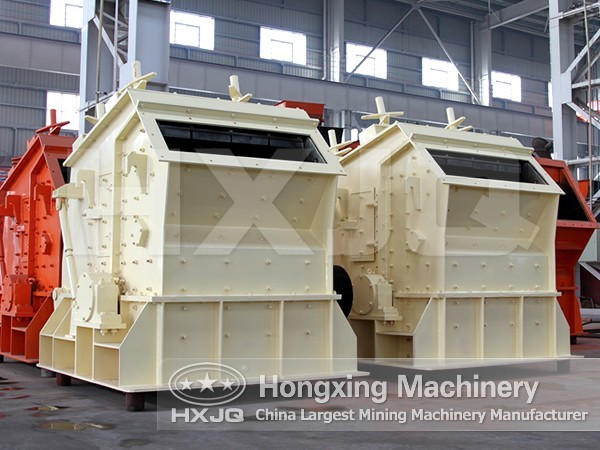

Impact Crusher

Production capacity: 30–550 t/h
Inlet size: 400×730–830×2040 mm
Feeding side length: 300–700 mm
Power: 45–400 kw
Total weight: 12–12 t
Material handling: limestone, coal gangue, granite, bluestone, etc

Advantages

1. It has big feeding mouth, high crushing chamber, high adaptability of the material hardness and small amount of stone powders

2. The gap between the impacting plate and the plate hammer is convenient to adjust so that it can effectively control the discharging granularity and the particle shape is good.

3. It has compact structure and strong rigidness, and the rotor has big rotational inertia.

Impact crusher is a kind of crushing machine that uses impacting energy to crush materials. When the machine works, driven by the electro motor, the rotor will rotate with high speed, and when the materials go into the action zone of the plate hammer, they will strike and are crushed on the plate of the rotor, and then are crushed again when they are thrown to the impacting device, and then the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again.

Impact Crusher

Technical data

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Total
weight
(t)
Overall
dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-66 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 6P   132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 6P   200 27 3180×2720×2620
PF-1320 Φ1300×2000 993×2000 500 165-320 6P   250 34 3220×3100×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 4P   315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 6P   630-710 83.21 4400×3866×4009
