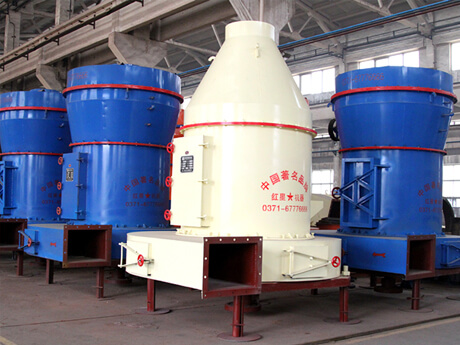

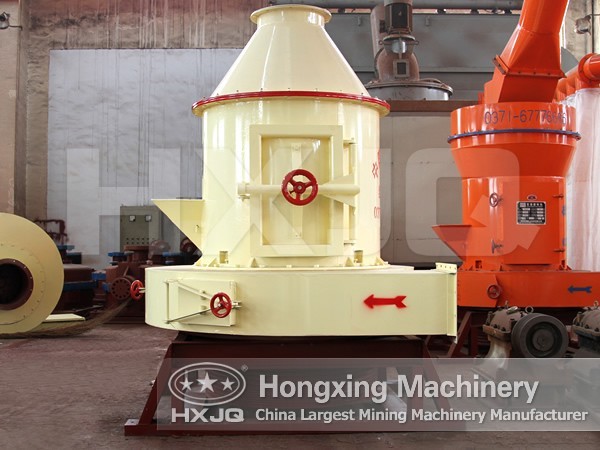

Powder Grinding Mill

Powder Grinding Mill

Production capacity: 0.2–21 t
Feeding size: ≤25 mm
Product granularity: 0.125–0.010 mm
Rotation speed of central shaft: 160–180 r/min
Material handling: feldspar, talc, barite, marble, limestone, argil, etc

Overview

Powder grinding mill is composed of main machine, air blower, super-fine analytical engine, cyclone powder collector for final products, bag type dust collector and connecting pipe and other auxiliary equipment such as bucket elevator, material storage bin, electronic control box, powder feeder and crusher can be equipped according to the requirements of the customers.

Advantages

1. Grinding mill has wide application ranges compared with airflow mill.

2. Compared with other grinding mills, the grinding force of the grinding roll of grinding mill is improved by 800-1200Kg under the high pressure spring.

3. Grinding mill saves more energy. When the output and the fineness are the same, the energy consumption of this system is only one third that of the airflow mill.

4. Micro powder mill has small investment and high profits. . When the output and the fineness are the same, the price of the micro powder mill is only one eight that of the airflow mill.

5. The feeding granularity of grinding mill is big.

Technical data

  Parameter Model Micropowder93 Micropowder92 Micropowder87 Micropowder76 Micropowder66
Feeding size(mm) ≤25 ≤25 ≤20 ≤20 ≤15
Size of finished product(mm) 0.125-0.010 0.125-0.033 0.125-0.010 0.125-0.033 0.125-0.010
Shift output of different material fineness(t) 0.8-12 0.6-10 0.4-8 0.3-6 0.2-4
Rotate speed of pulverizing ring(r/min) 140 148 160 170 180
Diameter of pulverizing ring(mm) 1006 973 907.5 850 725
Diameter of pulverizing roller(mm) 300 300 270 250 210
Height of pulverizing roller(mm) 160 160 150 150 150
Main Motor Y225M-8-30 Y225M-8-22 Y225M-8-22 Y225S-8-18.5 Y225M-8-15
Fan Motor Y180M-2-22 Y180L-4-22 Y160L-4-18.5 Y160L-4-15 Y160L-4-11
Analyzer Motor YCT180M-4A-4 YCT180M-4A-4 YCT180M-4A-4 YCT160-4B-3 YCT160-4B-3
