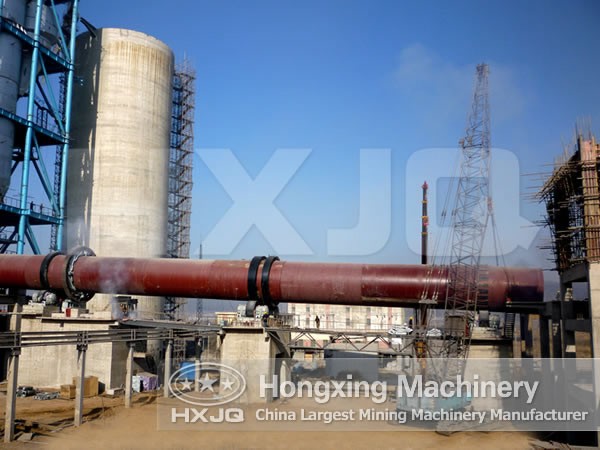

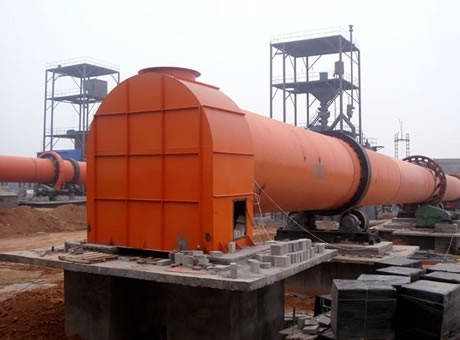

Rotary Kiln

Rotary Kiln

Production capacity: 168–10000 t/h
Rotation speed: 0.1–5 r/min
Motor power: 55–950 kw
Total weight: 149.61–1659 t
Dimensions: 2.5×40×3.5–6×95×4 m
Material handling: limestone, cement clinker, bauxite, aluminum hydroxide, chrome ore, etc

Overview

Rotary kiln refers to rotary calcining kiln which belongs to building material equipment. According to the material types to be processed, rotary kiln can be divided into cement kiln, metallurgical chemistry kiln and limestone kiln.

Advantages

Feature:Save pulverized coal, Harmless, Fuel use

Technical data

Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 -----
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29 outside disassemble kiln
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58 outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 outside disassemble klin
Φ3.0×60 3 60 3 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278 disassemble klin
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 kiln with prehrater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating klin for usimg ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 klin with prehrater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 klin with prehrater precalcine
Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633 klin with prehrater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 klin with  prehrater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 klin with prehrater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 klin with prehrater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 klin with prehrater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 klin with prehrater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 klin with prehrater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 klin with prehrater precalcine
