Drum Dryer

Drum Dryer

Production capacity: 2–80 t/h
Main motor: 7.5–160 kw
Weight: 9–135 t
Installation obliquity: 3–5 %
Material handling: wood, lignite, coal, slime, quartz, sand, slag, limestone, clay, sand, quartz sand, granulating slag, etc.

Overview

Drum dryer is mainly used for drying materials with some moisture and granularity in ore beneficiation, building material, metallurgy and chemical department. Rotary dryer has high adaptability to the materials so that it can be used for drying all kinds of materials, and in addition, the operation of this equipment is simple and reliable, for this reason, it gets wide application.

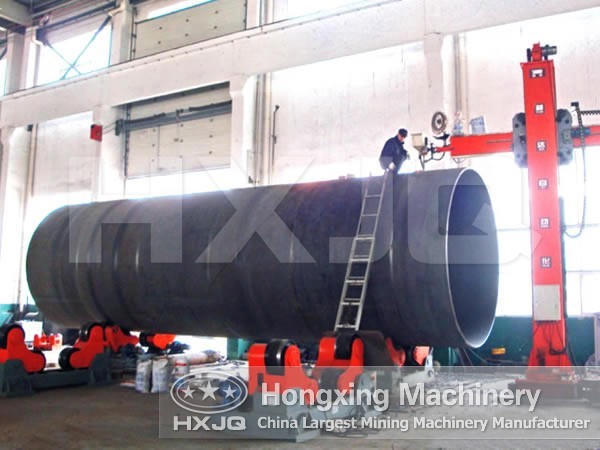

Drum Dryer

Advantages

This machine is mainly composed of rotary part, lifting board, transmission part, supporting part and seal ring. The drum dryer produced by our company uses new lifting board with many functions of guiding, current sharing and material lifting, and the materials can be comprehensively distributed on the radial sections of the drum dryer and the material curtain is in the thin, average and full state and the materials can fully contact the hot air, thus achieving the aim of making full use of the heat. The drum dryer produced by our company uses reasonable running parameters, and the coal and electricity consumption is reduced by over 10-15% and the output per machine is improved by over 10-15%, so that it has been widely used in the cement plants and ore beneficiation plants.

The heat source of the drum dryer comes from the combustion device and this dryer uses co-current heating method, so that when the materials to be dried go into the cylinder from the feeding box or feeding chute, they are pushed back by the spiral lifting board. Since the drum dryer is obliquely installed, the materials flow to the lower end of the machine under the gravity and the rotation of the machine, and on the other hand, the materials are repeatedly lifted by the lifting board to the higher end and then spread down constantly, so that the materials will form a even curtain inside the cylinder and conduct heat exchange with the hot air inside the cylinder. Since the materials constantly spread and the water contained in them will be dried, thus achieving the aim of drying.

Technical data

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
