Raw Material Mill

Raw Material Mill

Production capacity: 4.5–210 t/h
Motor power: 130–3550 kw
Total weight: 25.8–476 t
Material handling: cement, Portland products, new building materials, refractories, ceramics, glass, etc

Overview

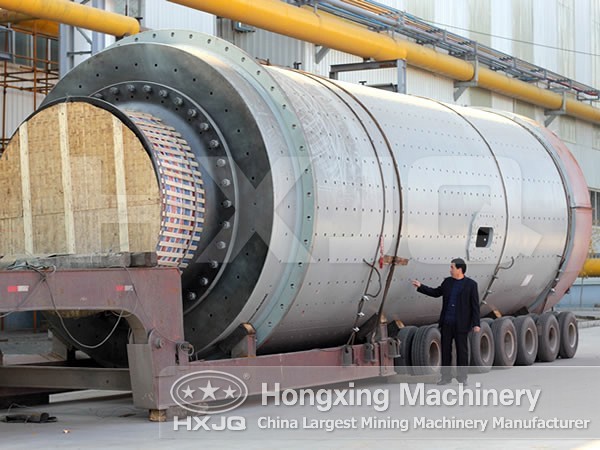

Raw Material Mill is the key equipment for re-grinding the cement clinker after it is distributed by the system and primarily crushed. Raw Material Mill is mainly used in the cement silicate product production industry.

raw_material_mill

Advantages

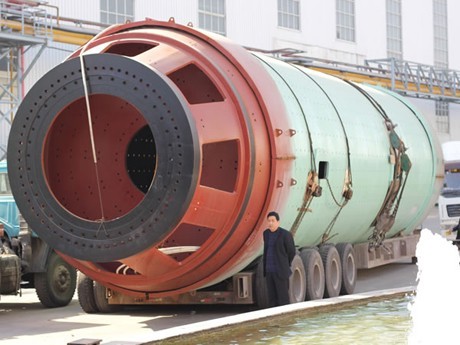

As for different types of Raw Material Mills, we use proper driving method and the main driving methods include edge driving and center driving.

raw_material_mill

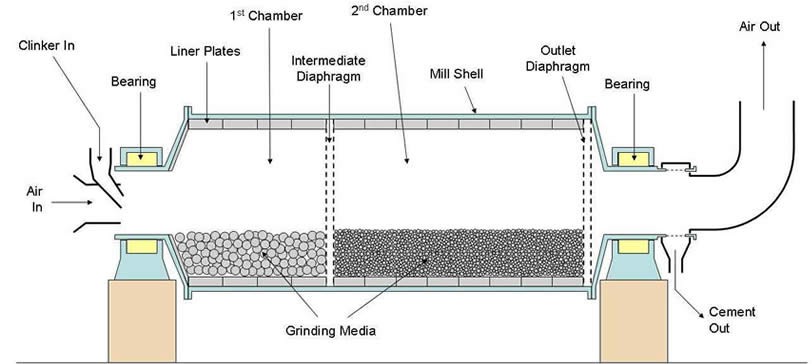

Inside the cylinder, there are new type classification lining board and standard ladder lining board, which increases the grinding surface of the materials, and the classification effect is better and the follow-up maintenance and spare parts changing are easier. The new partition structure uses adjustable lifting board and fixed lifting board which are easy to install and maintain.

Technical data

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.5×5.7 Open flow Brim ZD40 3.55 130 4.5-6 25.8
Φ1.83×6.4 Open flow Brim ZD60 4.5 210 7.5-15 43
Φ2.2×6.5 Circle flow Brim ZD70 5 380 14-26 60
Φ2.4×7 Circle flow Brim ZD70 5 475 24-28 81
Φ2.4×10 Circle flow Brim ZD80-4-Ⅱ 6.435 570 32-36 118
Φ2.6×10 Circle flow Brim JDX710 6.3 800 45-50 130
Φ3×9 Open flow Brim JDX800 6.3 1000 55-60 158
Φ3.2×9 Circle flow Brim MBY900 7.1 1250 62-65 195
Φ3.5×10 Open flow Brim JDX900 5.84 1250 70-75 200
Φ3.8×7.5 Circle flow Brim JDX900 5.6 1600 80 233
Φ4.6×10+3.5 Circle flow Central shaft JQS3550 15.1 3550 190 415
Φ4.6×10.5+3.5 Circle flow Central shaft JQS3550 15.1 3550 210 476
