Rod Mill

Rod Mill

Production capacity: 3–120 t/h
Feeding size: <=25–<=50 mm
Discharging size: 0.833–0.147 mm
Power: 18.5–630 km
Total weight: 5500–137000 kg
Material handling: quartz, iron ore, copper ore, gold, construction waste, glass, cement clinker, etc

Overview

Rod mill has very wide application and its performance has reached the international leading level. It is the most effective, reliable and practical stone crushing machine at present and is one of the stone crushing machine that is widely used for processing building sand in the sand industry.

Advantages

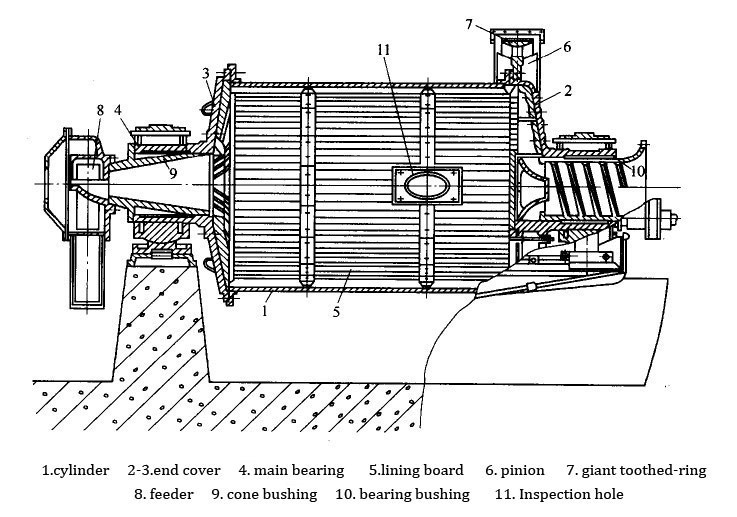

The electro motor drives the cylinder to rotate through the reduction gears and the peripheral rack wheel reducer transmission, or the low speed synchronous motor directly drives the cylinder to rotate through the peripheral rack wheel reducer transmission. Inside the cylinder, there are proper ore grinding media-steel rod. Under the eccentric force and frictional force, the ore grinding media are lifted to a certain height and fall down in the state of dropping.

Technical data

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
