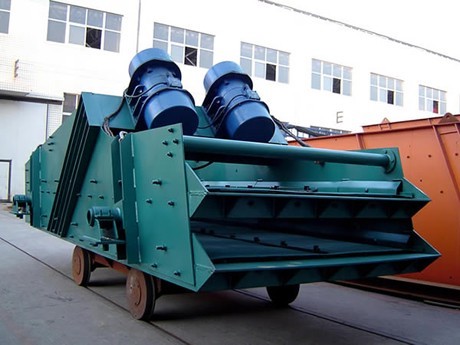

Linear Vibrating Screen

Linear Vibrating Screen

Production capacity: 10–600 t/h
Feeding size: ≤300 mm
Sieve layer: 1–4
Mesh size: 4–150 mm
Motor power: 5.5×2–11×2 kw
Total weight: 2250–9950 kg
Material handling: quartz sand, stone powder, etc

Overview

The linear vibrating screen produced by Hongxing Machinery is new type of highly efficient screen equipment which is widely used in many industries such as mine, coal, metallurgy, building material, refractory, light industry and chemistry. Linear vibrating screen has many advantages such as stable and reliable working condition, low energy consumption, low noise, long service life, stable vibration and high screening efficiency.

Advantages

Linear vibrating screen has many advantages such as stable and reliable working condition, low energy consumption, low noise, long service life, stable vibration and high screening efficiency.

Technical data

Model Sieve specification(L×W)

Sieve layer

Mesh size

Feeding size

Processing capacity Motor power

Total weight Vibrating frequency Double amplitude Sieve obliquity

Dimensions (L×W×H)
(mm) (mm) (mm) (t/h) (kw) (kg) (Hz) (mm) (℃) (mm)
ZSG1237 3700×1200 1 4-50 ≤200 10-100 5.5×2 2250 16 6-8 15 3800×2050×1920
2ZSG1237 3700×1200 2 4-50 ≤200 10-100 5.5×2 3345 16 6-8 15 3800×2050×2200
ZSG1443 4300×1400 1 4-50 ≤200 10-150 5.5×2 4100 16 6-8 15 4500×3040×2500
2ZSG1443 4300×1400 2 4-50 ≤200 10-150 5.5×2 4900 16 6-8 15 4500×3040×2700
3ZSG1443 4300×1400 3 4-50 ≤200 10-150 5.5×2 5870 16 6-8 15 4500×3040×2820
2ZSG1548 4800×1500 2 5-50 ≤200 15-200 7.5×2 5836 16 8-10 15 4800×3140×2814
3ZSG1548 4800×1500 3 5-50 ≤200 15-200 7.5×2 6900 16 8-10 15 4799×3140×3014
2ZSG1848 4800×1800 2 5-50 ≤300 50-500 7.5×2 6489 16 8-10 15 4799×3440×2814
3ZSG1848 4800×1800 3 5-50 ≤300 50-500 7.5×2 7750 16 8-10 15 4799×3440×3014
4ZSG1848 4800×1800 4 5-50 ≤200 50-500 11×2 8300 16 8-10 15 4799×3440×3503
2ZSG1860 6000×1800 2 5-150 ≤300 80-600 11×2 9950 16 8-10 15 6000×3440×3326
