Cone Crusher

Cone Crusher

Production capacity: 12–1000 t/h
Feeding size: 35–300 mm
Inlet width: 3–60 mm
Motor power: 30–280 kw
Total weight: 5–81.4 t
Material handling: limestone, granite, cobble, dolomite, bluestone, iron ore, etc

This cone crusher is suitable for crushing various kinds of ores and rocks with medium over hardness and it has the features of reliable structure, high production efficiency, convenient adjustment and economic use. The spring safety system is the overload protection device which is able to make the iron go through the crushing chamber without damaging machine. It adopts two sealing means: dry oil and water to separate stone powders and lubrication grease, thus ensuring reliable work of the machine.

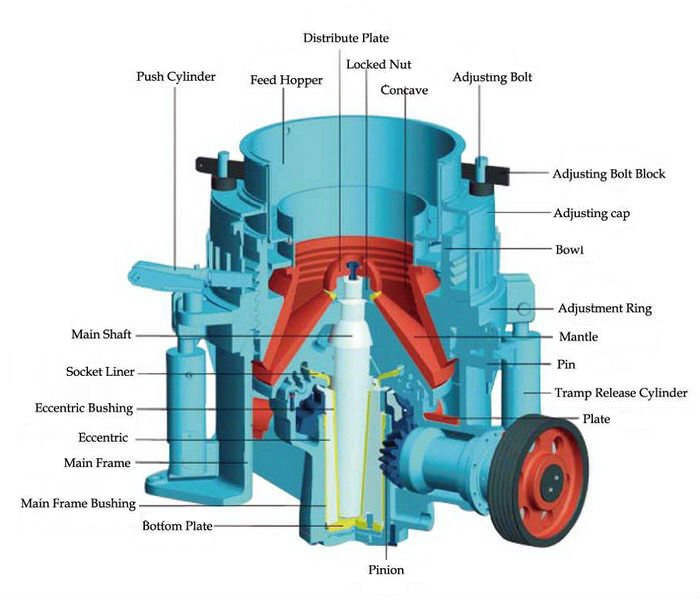

cone crusher

Overview

This series of crusher machine is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher, and the standard type is suitable for medium crushing; the medium type and the short-headed type is suitable for fine crushing, so that the customers can choose different types according specific need.

Technical data

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
