Toothed Roll Crusher

Toothed Roll Crusher

Production capacity: 70–460 t/h
Feeding granularity: 100–800 mm
Dimensions: 2100×2450×2000–2500×4360×2400 mm
Power: 74–320 kw
Weight: 16100–40700 kg
Material handling: coal, pebble, perlite, limestone, dolomite, etc

Overview

Toothed roll crusher is suitable for crushing raw coal in coal, metallurgy, mine, chemistry and building materials industry especially in large coal mines and coal dressing plants. Toothed roll crusher has very big crushing ability, and the electromotor is connected with the reducer with Limit type hydraulic coupler to prevent dynamic overload, so that the sensor is safe and reliable.

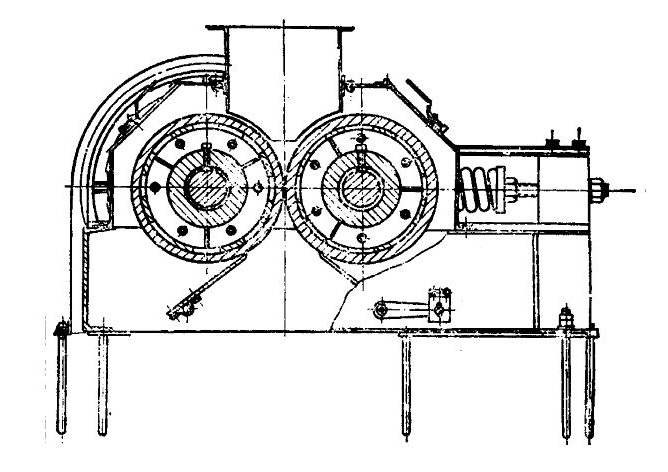

roll crushers

Advantages

1. Compared with other types of crushers, this series of crusher has many advantages such as big crushing ratio, no requirement for the water content of the materials to be crushed, low noise, low vibration, low energy consumption, small coverage size and simple and convenient maintenance.

2. It is equipped with hydraulic automatic yielding device which can effectively prevent the iron from damaging the roll and prevent wood and soft materials from damaging the normal work of the roll.

3. It is equipped with intelligent clearing device which can automatically remove the materials sticking on the chamber wall using the working intervals.

4. This machine adopts mechanical, equipment and hydraulic protective device and interlocking device, thus effectively protecting the electromotor, crusher and the whole system.

Technical data

Model Roller
diameter
(mm)
Roller
length
(mm)
Max.
Feeding
 Size
(mm)
Discharging
size(mm)
Output
(t/h)
Motor
power
(kw)
Total
weight(t)
Overall
dimension
(L×W×H)
(mm)
2PGC600×500 600 500 200-450 15-100 30-60 4P   11×2 3800 2450×1800×950
2PGC600×800 600 750 300-600 20-120 60-100 4P   18.5×2 7200 4500×1900×1350
2PGC800×1000 800 1000 500-800 30-150 100-160 4P   22×2 12600 2550×2050×1100
2PGC1000×1000 1000 1000 700-950 30-200 150-200 6P   45×2 18800 2780×4100×1550
2PGC1200×1200 1200 1200 800-1050 30-200 180-250 6P   55×2 29500 2780×3200×1980
2PGC1500×1200 1500 1200 1000-1150 30-200 200-300 6P   75×2 38600 8010×4500×2050
