Production capacity: 5–150 t/h
Inlet size: 1020×750–1850×1400 mm
Feeding size: ≤600–≤1200 mm
Power: 110–280 kw
Total weight: 16.2–63.6 t
Material handling: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

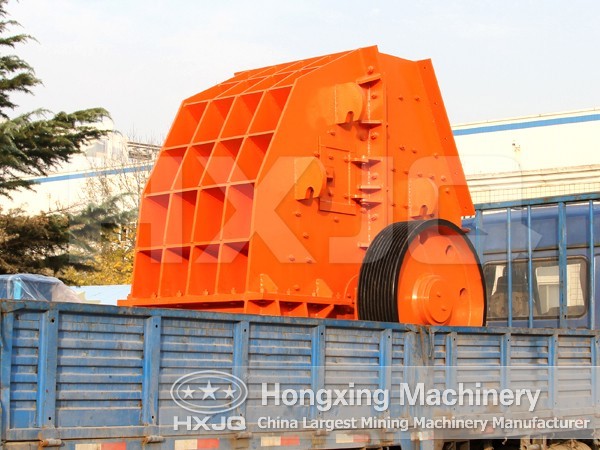

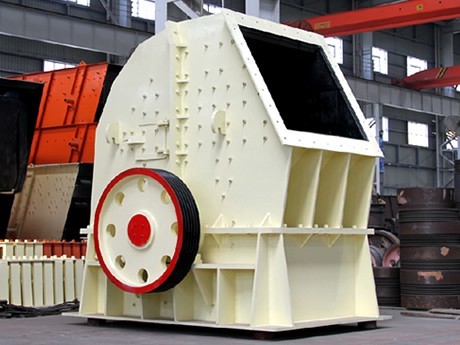

Heavy hammer crusher is one type of the crushing machines and is also a machine with relatively advanced technology among the hammer crusher series in the present mining machinery industry. It uses advanced production technology and can realize one-time crushing, and it has the features of high efficiency, energy conservancy and environment protection.
This crusher gets rid of the primary crushing process of jaw crusher so that it has big output, high efficiency, and uses low energy, saves manpower and material resources and reduces the crushing cost of materials. This series of product is suitable for crushing various kinds of medium hard materials and crisp materials such as limestone and coal in cement, mine, coal dressing, powder plant, chemistry and building material industry.
| Model | Rotor diameter×length (mm) |
Feed opening Length×width (mm) |
Feeding size (mm) |
Production capacity (t/h) |
Power (kw) |
Total weight (t) |
| PCZ1310 | 1300×1000 | 1020×750 | ≤600 | 100-180 | 132 | 16.2 |
| PCZ1510 | 1500×1000 | 1530×850 | ≤700 | 200-250 | 110×2 | 24.3 |
| PCZ1515 | 1500×1500 | 1530×900 | ≤750 | 260-350 | 132×2 | 30.1 |
| PCZ1616 | 1600×1600 | 1640×1200 | ≤1000 | 500-600 | 220×2 | 39.8 |
| PCZ1818 | 1800×1800 | 1850×1400 | ≤1200 | 650-800 | 280×2 | 63.6 |
Production capacity: 200 t/h
Processing material: river pebbles, quartz
Benefits: top notch technique support, all-round services
Production capacity: 250 t/h
Processing material: marble
Benefits: complete technique support, all-round services
