Production capacity: 12–1000 t/h
Inlet size: 35–460 mm
Outlet size: 3–64 mm
Feeding size: 30–391 mm
Motor power: 22–400 kw
Weight: 4490–89500 kg
Material handling: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, pebbles, basalt ore, etc

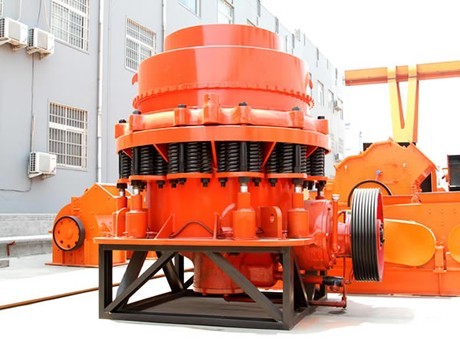

This machine is divided into standard type and short-headed type. Generally speaking, the standard type has big feeding granularity and relatively coarse discharging granularity, and the short-headed type has steep crushing cone and small feeding granularity which is conducive to producing fine particle materials, for this reason, the standard type compound cone crusher is generally used for coarse and medium crushing and the short-headed type compound cone crusher is generally used for medium and fine crushing.

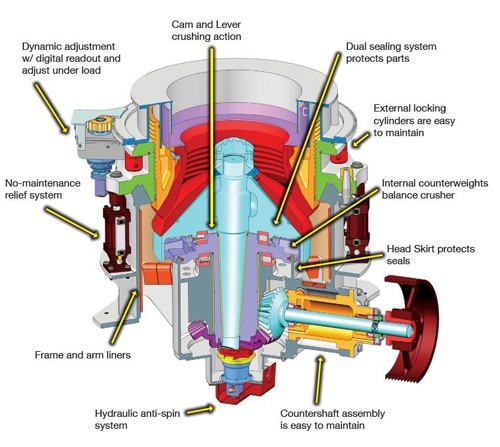

The medium and big crusher adopts hydraulic clearing system, thus decreasing the stoppage time; and the types of the crushing chamber of every specification is various, so that customers can choose different cavity types to better adapt the specific needs. This machine adopts lubricating grease for sealing, thus avoiding the problems that the water feeding and drainage system is easy to be blocked and the defect that water and grease are easy to mix; and the spring protective system is an overload protective device which can make sure that foreign matters and iron go through the crushing chamber without damaging the crusher.
| Specifications | Model | Cavity | Large end diameter of crushing cone (mm) |
Adjusting range of discharge opening (mm) |
Feed opening size of the open edge when recommending the min.discharge opening (mm) |
Max.feeding size (mm) |
Processing capacity (m³/h) |
Main motor power (kw) |
Weight (kg) |
Dimensions (L×W×H) (mm) |
| Ф600 |
PYFB-0607 | Standard fine type | 600 | 6-38 | 72 | 61 | 16-54 | 22 | 4490 | 2195×1540×1651 |
| PYFB-0609 | Standard coarse type | 9-38 | 109 | 93 | 18-68 | |||||
| PYFB-0610 | Standard extremely coarse type | 13-38 | 109 | 93 | 23-72 | |||||
| PYFB-0603 | Short head fine type | 3-13 | 35 | 30 | 9-36 | 4580 | ||||
| PYFD-0605 | Short head coarse type | 5-16 | 51 | 43 | 16-50 | |||||
| Ф900 |
PYFB-0910 | Standard fine type | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PYFB-0917 | Standard coarse type | 13-38 | 175 | 150 | 59-163 | |||||
| PYFB-0918 | Standard extremely coarse type | 25-38 | 178 | 150 | 118-163 | |||||
| PYFD-0904 | Short head fine type | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PYFD-0906 | Short head medium type | 3-16 | 76 | 65 | 27-100 | |||||
| PYFD-0907 | Short head coarse type | 6-19 | 102 | 85 | 59-129 | |||||
| Ф1300 | PYFB-1313 | Standard fine type | 900 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PYFB-1321 | Standard medium type | 16-38 | 210 | 178 | 132-253 | |||||
| PYFB-1324 | Standard coarse type | 19-51 | 241 | 205 | 172-349 | |||||
| PYFB-1325 | Standard extremely coarse type | 25-51 | 259 | 220 | 236-358 | |||||
| PYFD-1306 | Short head fine type | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PYFD-1308 | Short head medium type | 6-16 | 89 | 76 | 82-163 | |||||
| PYFD-1310 | Short head coarse type | 8-25 | 105 | 89 | 109-227 | |||||
| PYFD-1313 | Short head extremely coarse type | 16-25 | 133 | 113 | 209-236 | |||||
| Ф1600 | PYFB-1620 | Standard fine type | 1676 | 16-38 | 209 | 178 | 181-327 | 250 | 43270 | 3641×2954×3771 |
| PYFB-1624 | Standard medium type | 22-51 | 241 | 205 | 258-417 | |||||
| PYFB-1626 | Standard coarse type | 25-64 | 269 | 228 | 299-635 | |||||
| PYFB-1636 | Standard extremely coarse type | 38-64 | 368 | 313 | 431-630 | |||||
| PYFD-1607 | Short head fine type | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PYFD-1608 | Short head medium type | 6-19 | 89 | 76 | 136-281 | |||||
| PYFD-1613 | Short head coarse type | 20-25 | 133 | 113 | 190-336 | |||||
| PYFD-1614 | Short head extremely coarse type | 13-25 | 133 | 113 | 253-336 | |||||
| Ф2100 | PYFB-2127 | Standard fine type | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4631×3302×4638 |
| PYFB-2133 | Standard medium type | 25-51 | 334 | 284 | 862-1424 | |||||
| PYFB-2136 | Standard coarse type | 31-64 | 369 | 314 | 1125-1814 | |||||
| PYFB-2146 | Standard extremely coarse type | 38-64 | 460 | 391 | 1252-1941 | |||||
| PYFD-2110 | Short head fine type | 5-16 | 105 | 89 | 218-463 | 89500 | ||||
| PYFD-2113 | Short head medium type | 10-19 | 133 | 113 | 404-580 | |||||
| PYFD-2117 | Short head coarse type | 13-25 | 178 | 151 | 517-680 | |||||
| PYFD-2120 | Short head extremely coarse type | 16-25 | 203 | 172 | 580-744 |
Production capacity: 200 t/h
Processing material: river pebbles, quartz
Benefits: top notch technique support, all-round services
Production capacity: 250 t/h
Processing material: marble
Benefits: complete technique support, all-round services
