Raymond Mill

Raymond Mill

Production capacity: 2–120 t
Feeding size: ≤30 mm
Product granularity: ≤15–≤30 mm
Rotation speed of central shaft: 82–280 r/min
Application range: barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite

Advantages

This machine adopts advanced structure of the same types of products in domestic and foreign market and is upgraded and improved on the basis of traditional Raymond mill. Compared with ball mill, this equipment has high grinding efficiency, low electricity consumption and small coverage size and one-time investment.

raymond_mill

Overview

Application of Raymond Mill

Hongxing Raymond mill is widely used for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation material in mine, metallurgy, chemistry and building industry. The granularity of the final products of the R type Raymond mill can be adjusted in the ranges of 80—325 meshes and part materials can reach 600 meshes.

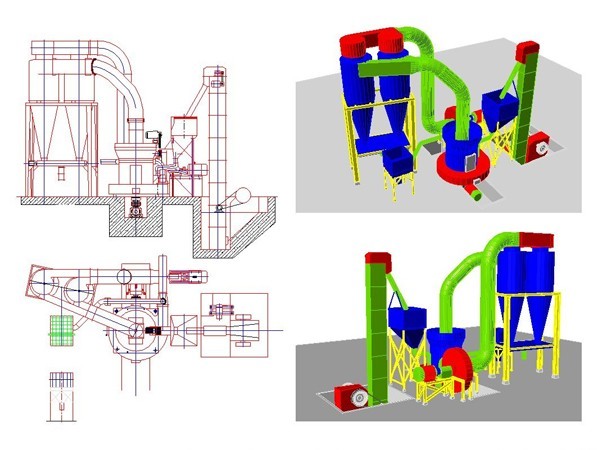

Main Structure of Raymond Mill

This machine is mainly composed of main engine, analytical engine, air blower, clone separator for final products, clone separator for micro powders and air pipe, and the main engine is composed of rack, inlet air volute, relieving tool, grinding roll, grinding ring and cover piece.

Performance Characteristics

Hongxing Raymond mill is widely used for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation material in mine, metallurgy, chemistry and building industry. The granularity of the final products of the R type Raymond mill can be adjusted in the ranges of 80—325 meshes and part materials can reach 600 meshes.

Technical data

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.044-0.173 0.044-0.173
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
