Cement Mill

Cement Mill

Production capacity: 6.5-135 t/h
Motor power: 245-4200 kw
Total weight: 43.8–485 t
Material handling: cement clinker, portland products, limestone, etc

Overview

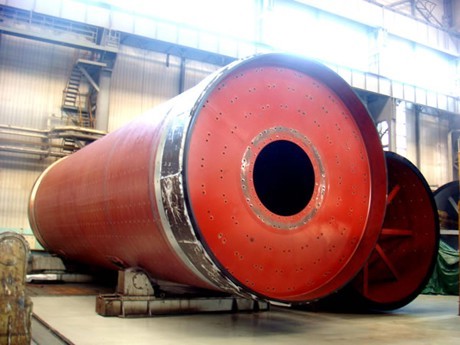

Cement mill is the key equipment for re-grinding the cement clinker after it is distributed by the system and primarily crushed. Cement mill is mainly used in the cement silicate product production industry.

cement_mill

Advantages

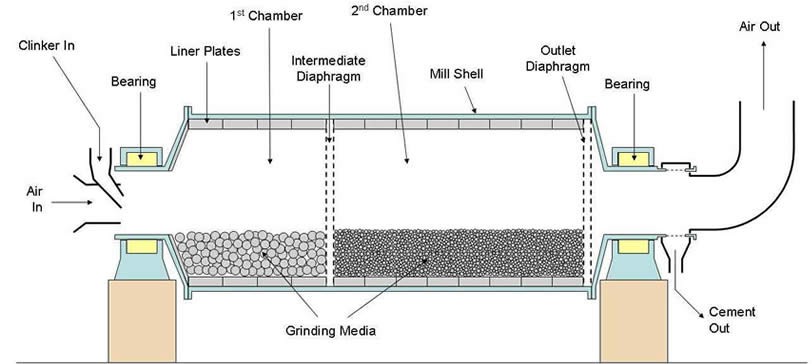

As for different types of cement mills, we use proper driving method and the main driving methods include edge driving and center driving. Inside the cylinder, there are new type classification lining board and standard ladder lining board, which increases the grinding surface of the materials, and the classification effect is better and the follow-up maintenance and spare parts changing are easier. The new partition structure uses adjustable lifting board and fixed lifting board which are easy to install and maintain.

Technical data

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Open flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Brim D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Brim D110 35.5 630 16-18 114
Φ2.4×13 Open flow Brim D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Brim MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Brim D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Brim D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485
