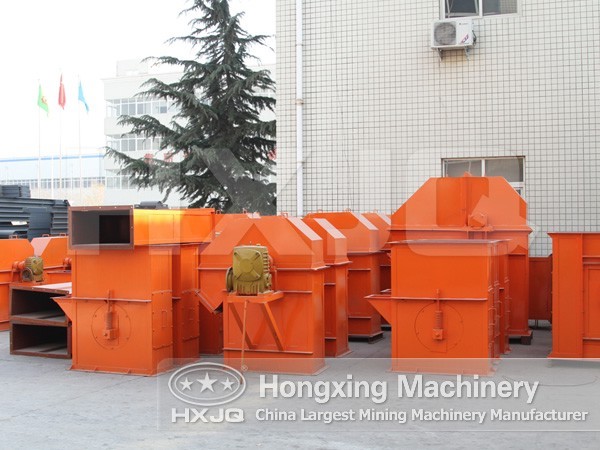

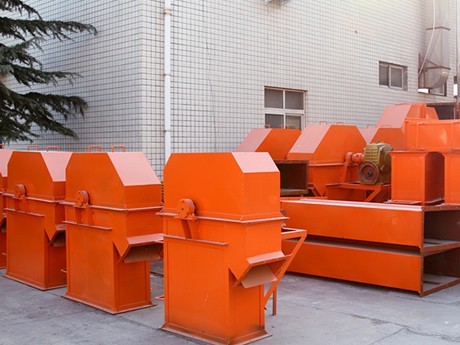

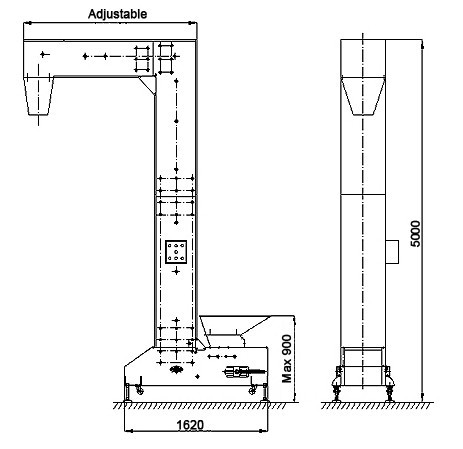

Bucket Elevator

Bucket Elevator

Conveying capacity: 3–60 m³/h
Hoisting height: 28–32.7 m
Motor power: 3–22 kw
Application range: coal, cement, stone, sand, clay, ore, etc
Benefits: complete technique support, all-round services

Overview

This elevator has the advantages of big conveying amount, high elevating height, stable and reliable operation and long service. Its main performance and parameters conform to the JB3926----85 Vertical Bucket Elevator (this standard equivalently refers to international stand and foreign advanced standard), and the hauling round-link chain conforms to the MT36----80 Mine High Strength Round-link Chain.

elevator

This elevator is suitable for elevating powdery, granulate and small-sized non-corrosive materials such as coal, cement, stone, sand, clay and ore. Since the hauling device of the bucket elevator is circuit chain, it is allowed to elevate the materials with relatively high temperature.

Advantages

1. The driving power of bucket elevator is small, and it adopts in-flow feeding, guiding discharging and large-capacity hopper. When the materials are elevated, there is almost no returning, so that the reactive power is small.

2. Bucket elevator had wide elevating ranges. This type of bucket elevator has few requirements for the types and property of the materials and it can not only elevate general powdery and granulate materials, but elevate materials with high corrosion, and what is more, it has fine sealing performance and little pollution.

3. Bucket elevator has stable and reliable operation. Advanced designing principle and processing method ensure the reliable operation of this machine and the trouble-free time exceeds 20,000 hours.

Technical data

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)

Motor prower

(kw)

TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)

Bucket Volume

(L)

Motor prower

(kw)

TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification

Max.lifting height

(m)

Max.lifting capacity

(m³/h)

 Percentageallowed

(%)

Pitch

(mm)

Motor power

(kw)

10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
