Active Lime Kiln

Active Lime Kiln

Production capacity: 150–1000 t/d
Burning temperature: 1250 °C
volume: 142–575 m³
Application range: active lime, calcined dolomite, etc

Advantages

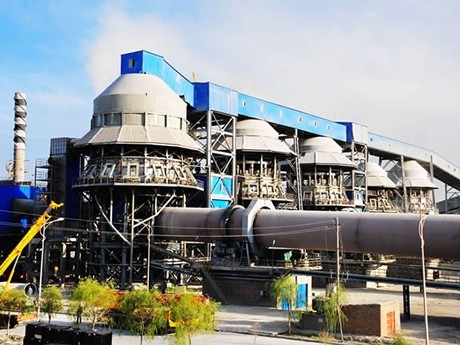

Active lime kiln is a type of rotary kiln and it is the main equipment used for calcining active lime. This equipment is mainly composed of the cylinder, supporting device, supporting device with catch wheel, transmission device, lubrication device, mobile kiln head and sealing device at the end of the kiln. Active lime kiln has the advantages of simple structure, reliable operation and easy control of the production process.

Active Lime Kiln

Overview

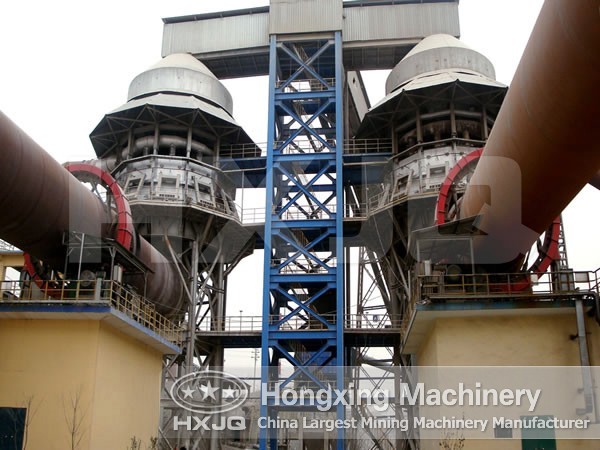

Active lime kiln has advanced structure. The vertical pre-heat with low-pressure loss can effectively improve the pre-heating effect, and the in-kiln decomposition rate of the pre-heated limestone can reach 20-25% and the 10-15mm fine particle limestone materials can be directly used.

This active lime kiln adopts combined type scale sealing, so that the air leakage factor is smaller than 10%. Compound type refractory matter is adopted to reduce the radiant heat loss. The infilling type circular or square vertical cooler that can be divisionally ventilated can cool the temperature of the lime that is discharged from the cooler to 80℃+ of the environment temperature for the convenience of transportation and storage, and it can also pre-heat the in-kiln secondary air to over 700℃ to make full use of the waste heat and save energy.

Technical data

Design
capacity
(t/d)
150 200 250 300 350 400 500 600 750 800 1000
Product Active
 lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite

Active
 lime
Calcined
dolomite

Active
lime
Calcined
dolomite
Active
 lime
Calcined
dolomite
Preheater round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
 or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
Vertical
Polygon
preheater
Vertical
Polygon
preheater
Vertical
Polygon
preheater
Rotary
kiln
Specification
(m)
Φ2.5
× 40
Φ2.8
× 42
Φ3
× 46
Φ3.2
× 50
Φ3.5
× 54
Φ3.6
× 56
Φ3.8
× 58
Φ4×60
Φ4.2×50
Φ4.3
× 58
Φ4.3
× 64
Φ4.8
× 68
Effective
volume
(m³)
142 190 235 292 390 430 505 575/548 670 738 1005
Burning
temperature
(°C)
1350/
1250
1350/
1250
1350/
1250
1350/
1250
1350 1350 1350 1350 1350 1350 1350
Cooler Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Fuel Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Heat rate
(
KJ/KgC3O
)
5300/
5000
5300/
5000
5300/
5000
5300/
5000
5225 5225 5100 5100 4810 4810 4810
