Production capacity: 12–360 t/h
Feeding size: 35–60 mm
Power: 37–400 kw
Rotation speed of impeller: 800–3000 r/min
Total weight: 5600–27600 kg
Material handling: granite, basalt, limestone, pebble, cement clinker, comprised, iron ore, bauxite, etc
With the high market demand for machine-made sand worldwide, crusher manufacturers are turning attention to manufacturing high efficient sand making machine. The third generation sand making machine-VSI sand making machine is invented to meet demand from sand making industry.

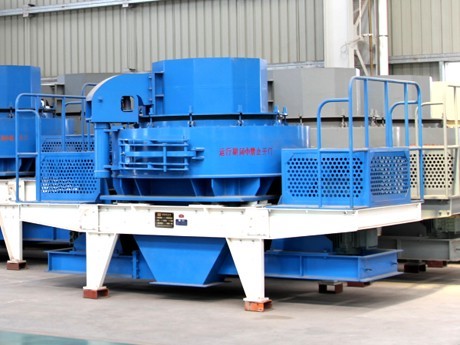

VSI sand making machine, namely vertical shaft impact crusher, is widely applied to make high quality sand by processing cobblestone, pebble stone, granite, etc. The produced sand is mainly used in water resource and hydro-power engineering, high-speed rail building, railway and airport construction.
| Model specification |
Max.feeding size （mm） |
Power （kw） |
Rotation speed of impeller （r/min） |
Capacity （t/h） |
Overall dimension （L×W×H） （mm） |
Total weight （kg） |
| HX-06 | 35 | 2P 37-55 | 2000-3000 | 12-30 | 2500×1620×2600 | 5600 |
| HX-07 | 45 | 4P 55-75 | 1500-2500 | 25-55 | 2700×1760×2800 | 7600 |
| HX-09 | 50 | 4P 110-150 | 1200-2000 | 55-100 | 3900×2000×3070 | 12600 |
Production capacity: 200 t/h
Processing material: river pebbles, quartz
Benefits: top notch technique support, all-round services
Production capacity: 250 t/h
Processing material: marble
Benefits: complete technique support, all-round services
