Hammer Crusher

Hammer Crusher

Production capacity: 5–150 t/h
Feeding size: ≤200–≤350 mm
Discharging size: ≤25–≤35 mm
Motor power: 11–480 kw
Total weight: 0.8–37.5 t
Material handling: limestone, coal gangue, bluestone, etc

Introduction

Hammer crusher can grind, pulverize, and crush a wide range of materials. This crusher employs a rain of hammer blows to shatter and disintegrate the material. Hammer crusher produces a finish product size that is dependent upon openings in perforated screens or grate bars, number, size and type of hammers, grinding plate setting, rotor speed, etc.

hammer_crusher

Features

1. Large opening for flexibility

2. Liners are bolted for easy change out

3. Adjustable grinding plate for process control

4. Large discharge opening

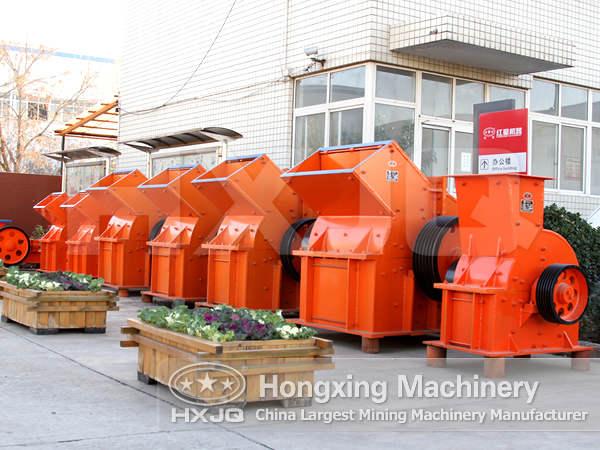

hammer_crusher

Application

Coal, limestone, gypsum, coal gangue, concrete, pebble, etc.

Technical data

Specification Capacity(m³/h)
Motor Power
(kw)
PCΦ400×300 5-10 4P 11KW
PCΦ600×400 10-22 4P 22KW
PCΦ800×600 18-40 6P 55KW
PCΦ1000×800 25-50 8P 75KW
PCΦ1000×1000 30-55 8P 90KW
