Production capacity: 14–80 m³/h
Feeding size: ＜50 mm
Disk diameter: 1000–2000 mm
Disk rotation speed: 4.79–7.5 r/min
Power: 2.2–11 kw
Weight: 740–5234 kg
Application: ore, coal, cement, clinker, limestone, clay powder, granular or small block material, etc.

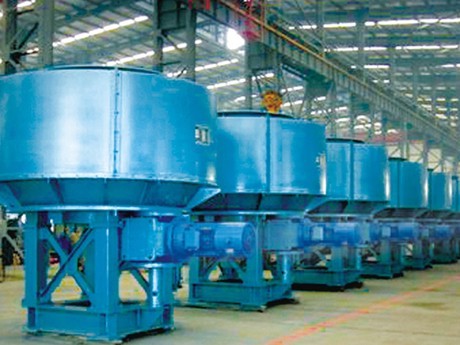

Disk feeder is a feeding machine suitable for feeding powdery ores whose granularity is smaller than 20mm.

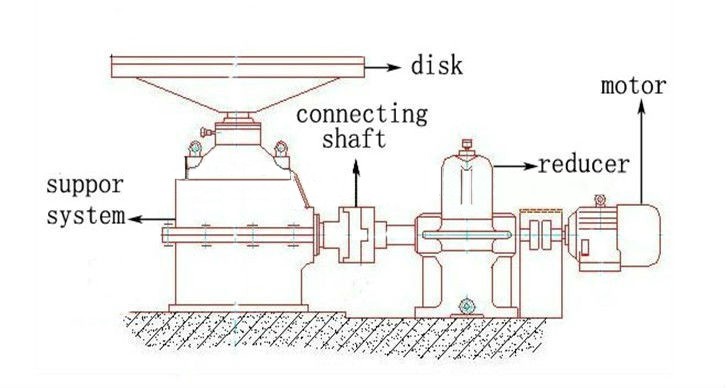

Disk feeder consists of driving device, feeder, measuring belt conveyor and measuring device. The belt speed of the measuring belt conveyor is smaller than 1m/s and to measure the belt speed, a speed detector is equipped and to prevent the measuring roll from deflecting, a detection pole is equipped for the adjustment.
Disk feeder is a feeding machine measured in volume and it can evenly and continuously feed the materials to the next equipment. It is suitable for conveying all kinds of non-sticky materials, but not suitable for feeding powdery materials whose flowability is good. The materials that can be fed by disk feeder include ore, pulverized coal, cement, clinker, limestone, clay and other granulate and small-sized materials.
| Specification | Feeding Capacity(t/h) | Motor Power (kw) |
| KR1000 | 14 | 7.5 |
| KR1500 | 25 | 7.5 |
| KR2000 | 100 | 7.5 |
| BR1000 | 13 | 11 |
| BR1500 | 30 | 11 |
| BR2000 | 80 | 15 |
Production capacity: 150 t/d
Processing material: iron ore, hematite, limonite, manganese ore, ilmenite
Benefits: complete technique support, all-round services
Production capacity: 300 t/d
Processing material: iron ore, copper, zinc, lead, nickel, gold
Benefits: superb technique support, all-round services
