Production capacity: 4.5–139 t/h
Spiral diameter: 150–600 mm
Standard rotation speed of screw shaft: 20–190 r/min
Application range: pulverized coal, clay, sand, etc

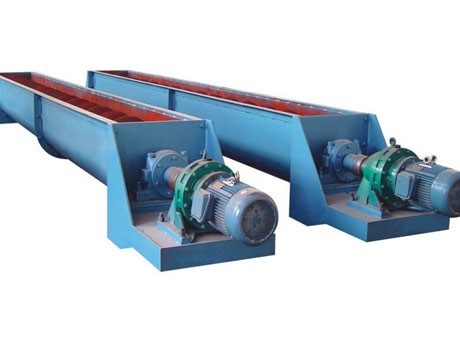

GX spiral conveyor is a continuous conveying machine that is widely used in the construction industry. This machine can be widely used for conveying all kinds of powdery and small-sized materials in the industrial departments of chemistry, building material, machinery, coal, metallurgy, light industry, food, medicine, transportation and water and electricity.
Spiral conveyor is divided into horizontal spiral conveying equipment and vertical spiral conveying equipment and it is mainly used for the horizontal conveyance and vertical elevating of all kinds of powdery, granulate and small-sized loose materials. This series of spiral conveyor is not suitable for conveying fragile, sticky and easily caked materials or hot, corrosive and other unique materials.

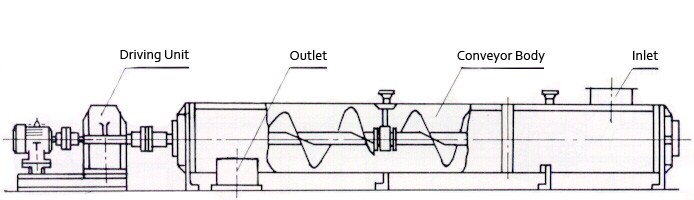

When GX spiral conveyor works, the electromotor drives the spiral to rotate, and it can horizontally, obliquely and vertically convey materials and it is the ideal equipment to convey all kinds of powdery and granulate materials. It uses the rotating spiral to push the materials to be conveyed along the fixed main case, and the materials will not rotate with the spiral, thus achieving the aim of conveying the materials. Spiral conveyor is divided into horizontal spiral conveying equipment and vertical spiral conveying equipment.
| Specification | Length (m) |
Capacity (m³/h) |
Power (kw) |
| 100 | 10-30 | 2.2 | 1.1-1.6 |
| 160 | 10-30 | 7.6 | 1.5-2.8 |
| 200 | 10-30 | 11 | 2.2-3.2 |
| 250 | 10-30 | 22 | 2.4-5.3 |
| 315 | 10-30 | 36.4 | 3.2-8.4 |
| 400 | 10-30 | 66.1 | 5.1-11 |
| 500 | 10-30 | 93.1 | 4.1-15.3 |
