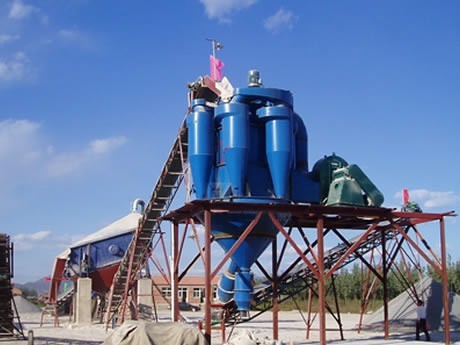

Combined Type Powder Concentrator

Combined Type Powder Concentrator

Production capacity: 10-180 t/h
Motor power: 15.0–132 kw
Rotating speed: 110–500 r/min
Processing air quantity: 16000–180000 m³/h
Material handling: cement, coal, etc

Overview

Combined type powder concentrator is mainly used as the separation equipment in the closed-circuit system of raw material powder grinding in the cement plant and also as the separation equipment for grinding other non-metallic ores, and it is used in the building industry.

Advantages

This powder concentrator has reasonable internal structure, high powder separation efficiency and obvious energy saving effect. This product has simple system configuration which can greatly improve the yield of the system.

The materials that are ground are fed into the feeding mouth of the powder concentrator and are evenly scattered through the rotating spreading plate of the rotor. Due to the obstruction of the retention ring, the materials will scatter to the powder concentration area between the air deflector and the rotor. The powder dust particles that move in the powder concentration eddy will be influenced by the gravity, wind power and rotary centrifugal force at the same time, for this reason, the powder dust particles with different initial velocity and grain diameter will have different movement locus, and the fine and slight particles will be sucked inside the rotor with the air flow and go into the cyclone collector in four ways through the air distribution room, and the majority part of the final fine powders are separated, and the dusty air will be discharged from the exhaust duct of the cyclone collector and go to the next dust collecting equipment. The coarse and heavy particles will fall and are gathered to the coarse powder collecting cylinder through the cone and returned to the grinding mill for re-grinding.

Technical data

Type Finness of Final Products
R0.08(%)
Processing Air Quantity
(m³/h)
Rotating Speed
(r/min)
Main Motor Power
(kw)
Max. Feeding Amount
(t/h)
Output
(t/h)
KMS-Ⅰ 0-3 16000 250-500 15.0 50 10-18
KMS-Ⅱ 0-3 23000 220-450 18.5 90 16-28
KMS-Ⅲ 0-3 32000 180-400 22.0 120 2040
KMS-Ⅳ 0-3 45000 160-340 30.0 150 30-50
KMS-Ⅴ 0-3 60000 130-306 30.0 210 40-70
KMS-Ⅵ 0-3 75000 130-260 37.0 260 50-85
KMS-Ⅶ 0-3 95000 120-240 45.0 330 75-110
KMS-Ⅷ 0-3 120000 110-200 55/75 400 95-130
KMS-Ⅸ 0-3 150000 110-180 90/110 500 110-160
KMS-Ⅹ 0-3 180000 110-170 110/132 580 120-180
